Pleasure-Way REKON Motor Home Class B - Diesel RVs For Sale

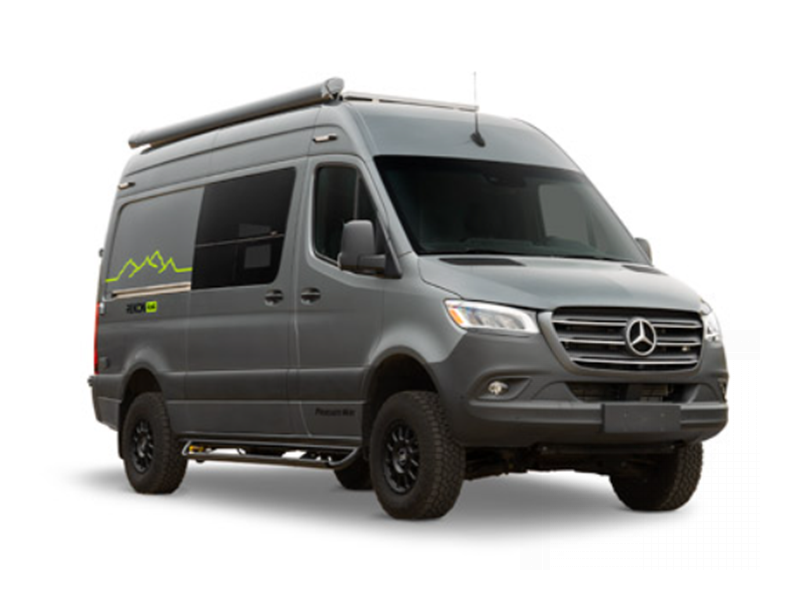

The REKON 4X4 Class B diesel motorhome by Pleasure-Way is an adventure van that allows you to take the less-traveled path while seeking adventure! The REKON is built on a Mercedes-Benz 2500 Sprinter 4X4 chassis with 11" of ground clearance to handle any terrain, weather or road conditions.
From the garage that provides 124 cubic feet of storage space to fit camping gear, sporting equipment, cargo bins, backpacks and more to the fully customizable sleep system/work area, you can sleep indoors and leave nothing behind. This boon-docking powerhouse offers four 100Ah Eco-Ion Earth Smart lithium (LiFePO4) coach batteries, a 400W solar panel package, and a Xantrex 2000W pure-sine wave inverter, so the REKON's power system can be self-sustaining. And the multi-function wet bath/gear locker gives you choices when traveling for a short trip or a long getaway!
Get ready for a compact RV that gives you the ability to get to those places most don't try and camp off-grid in a Pleasure-Way REKON 4X4 Class B diesel motorhome!
-
REKON Std. Model
Pleasure-Way REKON 4X4 Class B diesel motorhome Std. Model highlights: 124 Cu. ... more about REKON Std. Model
Featured Std. Model
Specifications
Sleeps 2 Length 19 ft 5 in Ext Width 7 ft 1 in Ext Height 9 ft 4 in Exterior Color Blue Grey, Tenorite, Selenite GVWR 9050 lbs Cargo Capacity 1650 lbs Fresh Water Capacity 40 gals Grey Water Capacity 10 gals Tire Size 245/75R16 Furnace BTU 11500 btu Fuel Type Diesel Engine 3.0L V6 Chassis Mercedes-Benz Sprinter 2500 4X4 Horsepower 188 hp Wheelbase 144 in Available Beds Murphy Bed System Torque 325 ft-lb Refrigerator Type Truma Top Loading Fridge/Freezer Refrigerator Size 2.1 cu ft Cooktop Burners 1 Number of Awnings 1 LP Tank Capacity 20 lbs Water Heater Type Truma AquaGo Comfort Plus Instant Awning Info Power w/LED Lights Shower Type Wet/Bath Shower Electrical Service 30 amp Similar Floorplans
REKON Features:
Standard Features
Interior

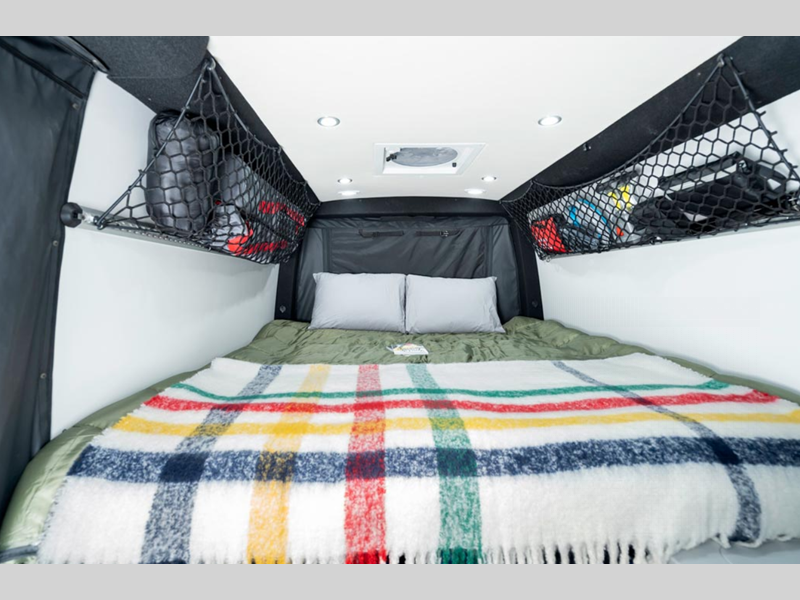

- Removable murphy bed system: 70" x 72"
- Lagun table mount system w/ 360° swivel tabletop
- Flip-down workstation (driver’s seat)
- Privacy/sun shades for windshield & cab doors
- Side and rear door roll-up screens
- Blum® cabinet hinges
- Flush-mount laminate cabinet doors
- Laminate-wrapped kitchen & wall partitions
- Premium vinyl flooring
- Vinyl soft touch headliner
- 3M Thinsulate™ insulation
- Fire extinguisher
- LP, CO & Smoke detectors
Galley
- 2.1 cu. ft. top-loading Truma 12V / 110 portable fridge/freezer (holds 60L or 96 cans)

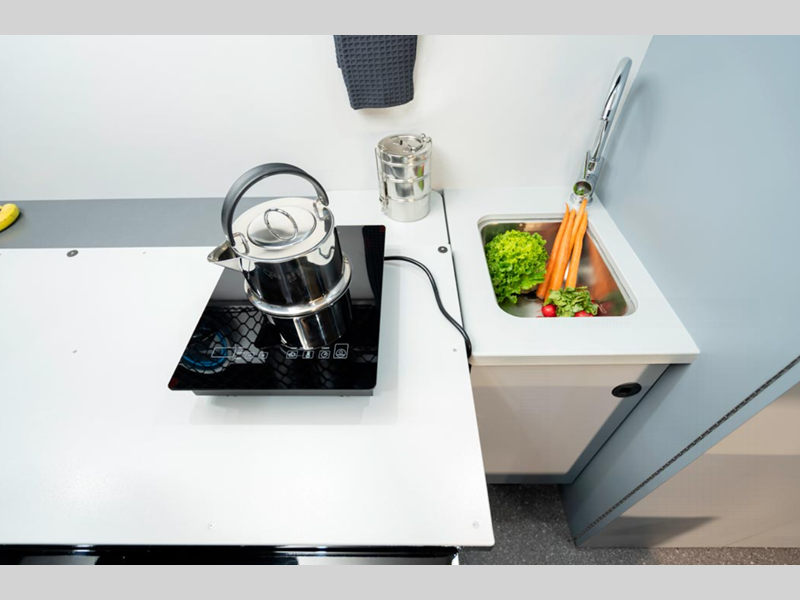

- Portable 1-burner induction stove
- 13" x 11" stainless steel sink
- High-arc, single-handle faucet
- Large storage drawer under fridge w/ soft close
- 72" x 22.5" fold-down garage workstation
- King StarBoard® marine-grade polymer surfaces
Bathroom
- Private enclosed wet bath w/ shower
- Shower curtain
- Handheld showerhead
- 5 Gal. Thetford cassette toilet w/ swiveling bowl
- Flexible shelving system w/ removable closet rods
- Ducted heat
Electrical
- Multiplex wiring
- Dimmable LED lighting
- Dual 10-inch touchscreen control panels
- 4 x 100Ah Eco-Ion Earth Smart Lithium (LiFePO4) coach batteries
- 400-Watt solar panel package
- Go Power!® MPPT solar controller
- Xantrex™ 2000-Watt Pure-sine wave inverter
- Mastervolt Mac Plus DC-DC converter
- 80-amp lithium charger
- 12-volt coach battery disconnect
- Charge line disconnect (solar and alternator)
- 30-amp power cord
- USB charging ports
- 12V auxiliary power outlet
- 7 x 110-120V power outlets
- AC distribution panel
- DC load center
Touchscreen Control Panel
- 10-inch full-color display
- Coach battery state-of-charge meter
- Coach battery temperature gauge
- Estimated time until full charge read-out
- Remaining runtime for DC power read-out
- Real-time 12-volt net loss/gain amperage meter
- Solar charger controls and monitoring
- Dimmable LED light banks
- Tank level monitoring for fresh water
- Climate control center w/ thermostat
- Truma AquaGo® comfort plus water heater controls
- Water pump, awning and vent controls
- DC electrical system diagnostics
Exterior
- 400-Watt solar panel package
- LED perimeter lighting (4 lights)
- Power awning w/ LED lights
- Exterior shower w/ handheld wand
- 110-120 volt power outlet
- Utility center (LP switch, 30-amp power outlet, city water connection)
- Black Rhino Havasu rims
- Toyo all-terrain tires: 245/75R16
- Tubular aluminum running boards
- Undermount spare tire
Heating, Ventilation, & Cooling
- Truma VarioHeat 11,500 BTU furnace
- Dual bi-directional Fan-tastic Vent fans w/ rain sensor
Plumbing & Liquid Propane Systems
- Shurflo® automatic demand water system
- Truma AquaGo® comfort plus instant water heater
- Water heater bypass valve
- Interior fresh water tank with ducted heat
- Fresh water tank level monitoring
- No exterior water lines or tanks
- Four season coach
- LP BBQ quick connect
- Removable LP tank: 20 lbs. / 17.8 L
Rear Seating Area
- Bed up garage storage area: 124 cu. ft.
- Bed down garage storage area: 52 cu. ft.
- Garage storage lighting
- L-track tie-down system
- Expansive cargo net storage system
Chassis
- Chassis Model - Mercedes-Benz Sprinter 2500 4x4
- Engine - 3.0 L V6 Diesel
- HP Rating - 188 HP
- Torque Rating - 325 ft-lb
- Wheelbase - 144"
- Transmission - 7-speed automatic
- Fuel Type - Diesel
- Braking System - 4-wheel Disc brakes w/ ABS
- Stability and Traction - Adaptive electronic
- Tires - 245/75R/16 Toyo all-terrain
- Alternator - 14V 220A
- Chassis Battery - 12V 100Ah
- Hitch and Wiring - 7-pin wiring connector
Cab Conveniences
- MBUX Multimedia System w/ 10" Touchscreen
- Navigation
- Bluetooth® connectivity w/ audio streaming
- “Hey Mercedes” voice control
- Smartphone integration w/ hands-free function
- Multimedia interface w/ USB-C ports
- Driver and passenger swivel seats
- 360 degree rear view camera system
- Keyless ignition
- Air conditioning
- Power windows, door locks and mirrors
- Tilt / telescopic steering wheel
- Chassis battery quick-disconnect
- Overhead control panel w/ 2 reading lights
Safety
- Airbags – driver and passenger
- Distronic Plus® Adaptive Cruise Control
- Drive Away Assist
- Active Brake Assist
- Active Distance Assist Distronic
- Traffic Sign Assist
- Attention Assist
- Active Lane Keeping Assist
- Blind Spot Assist
- Crosswind Assist
- Tire repair kit w/ air compressor and repair liquid
- Locking fuel fill
- Undermount spare tire
See us for a complete list of features and available options.
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.
Manu-Facts:

A Strong Heritage of Innovation, Integrity and Building Lasting Relationships
Pleasure-Way founder, Merv Rumpel, started this company on the foundation of an old-fashioned work ethic, pride in craftsmanship and a customer comes first approach to business. Dean Rumpel, Merv’s son, is now the Pleasure-Way CEO and is proud to follow these same principles today.
Even now, in the company’s 35th year, we do not mass produce our motorhomes on assembly lines, as each motorhome is hand-crafted and custom-fit to exacting standards and quality inspections. We are proud of each and every one of the motorhomes we have built and continue to stand behind our work.
We would never be where we are today without the incredible dedication our employees have shown and the enthusiastic support from our owners. We strive to create motorhomes that live up to both our high standards and your high expectations. With this in mind, we will continue to create modern products that will last for years to come.
